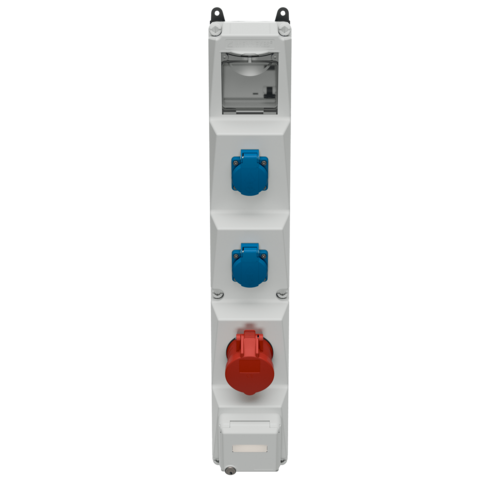

AMAXX s receptacle combination 960340

Name: AMAXX s receptacle combination
Brand: MENNEKES
SKU: 960340

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 16 A, 5 p, 400 V

SCHUKO®

pre-wired for installation
hinged to the side

enclosure and insert made of AMAPLAST

Art.nr.960340
EAN4015394291206
Std. Packa. 1 Antal.

Tekniska specifikationer

AMAXX s receptacle combination 960340

CEE 16 A, 5 p, 400 V	1
SCHUKO®	2
Datauttag	1 Cepex RJ45, 2 fold Cat.6
Säkring	1 RCD 40 A, 4 p, 0.03 A
Försäkring max.	16 A
InA	16 A
Anslutning / Matningsledning	for 1 cable up to 5 x 10 mm²
Skyddstyp	IP44
Kapslingsmaterial	plast
Vikt	2800 g
Höjd	650 mm
Bredd	112.5 mm
