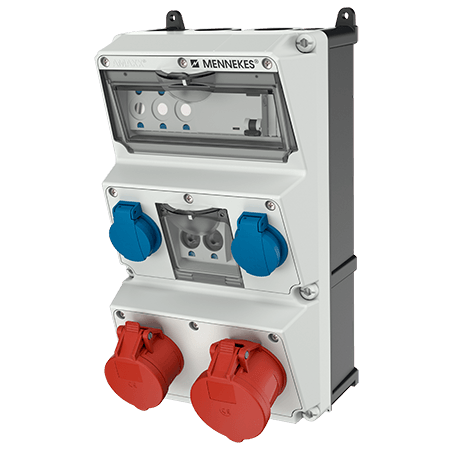

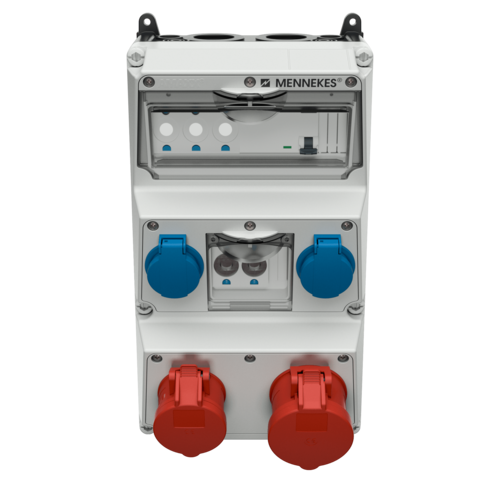

AMAXX receptacle combination 930007
With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO®
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
Du kan hantera våra produkter i olika listor i inköpslistan/varukorgsområdet.
Ge den nya listan ett namn
- Vänligen ange ett listnamn
- Listnamnet finns redan
- Ange ett giltigt listnamn
Tekniska specifikationer
AMAXX receptacle combination 930007
| CEE 32 A, 5 p, 400 V | 1 |
|---|---|
| CEE 16 A, 5 p, 400 V | 1 |
| SCHUKO® | 2 |
| Säkring |
|
| Försäkring max. | 32 A |
| InA | 32 A |
| RDF | 0.85 |
| Anslutning / Matningsledning |
|
| Skyddstyp | IP44 |
| Kapslingsmaterial | plast |
| Vikt | 4525 g |
| Höjd | 390 mm |
| Bredd | 225 mm |
