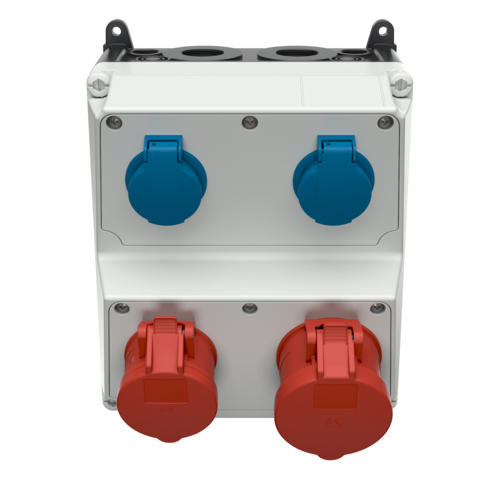

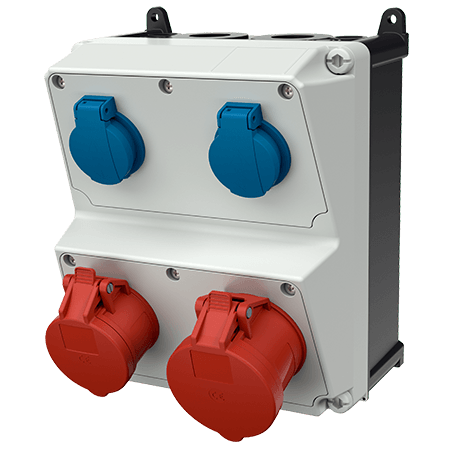

MENNEKES AMAXX receptacle combination 920025
MENNEKES AMAXX receptacle combination 920025 images3d

Snälla du acceptera marknadsföringscookies för att titta på den här videon.

Video

AMAXX receptacle combination 920025

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO®
  • pre-wired for installation
  • hinged to the side
  • Art.nr.920025
  • EAN4015394223238
  • Std. Packa. 1 Antal.
Du kan hantera våra produkter i olika listor i inköpslistan/varukorgsområdet.
Ge den nya listan ett namn
  • Vänligen ange ett listnamn
  • Listnamnet finns redan
  • Ange ett giltigt listnamn

Tekniska specifikationer

AMAXX receptacle combination 920025

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 2
Anslutning / Matningsledning
  • for 1 cable up to 5 x 10 mm² and 1 cable up to 5 x 10 mm²
Skyddstyp IP44
Kapslingsmaterial plast
Vikt 2800 g
Höjd 260 mm
Bredd 225 mm

Video

AMAXX receptacle combination 920025

Snälla du acceptera marknadsföringscookies för att titta på den här videon.

Video

Riktlinjer

AMAXX receptacle combination 920025

Lämpliga tillbehör

AMAXX receptacle combination 920025

MENNEKES CombiTOWER 15678

CombiTOWER

Art.nr. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

MENNEKES CombiTOWER 15679

CombiTOWER

Art.nr. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

MENNEKES CombiTOWER 15681

CombiTOWER

Art.nr. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

MENNEKES CombiTOWER® 15680

CombiTOWER®

Art.nr. 15680

tillverkad av rostfritt stål (material 1.4301), material 1.4571 vid förfrågan, med låsbar dörr, med avtagbar kåpa och frontplåt, mått (H x B x D): 1043 x 254 x 415 mm, blank yta

MENNEKES Weather shield 15682

Weather shield

Art.nr. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm
